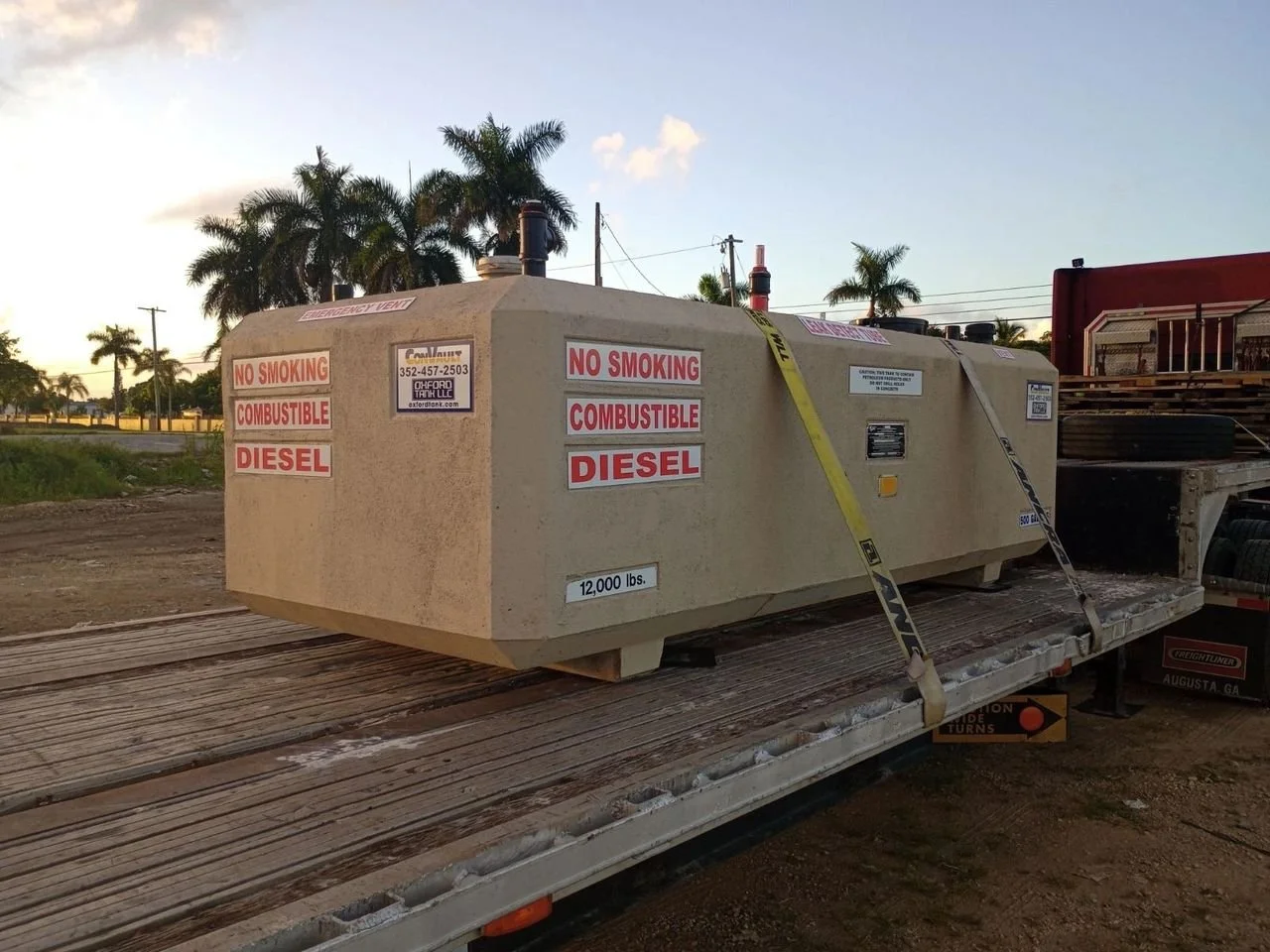

The Convault Aboveground Fuel Storage Tank is considered a shop-fabricated tank.

The only tank in production that is concrete-encased with a UL 752 level 8 listing.

We also carry the UL 2085 as well as the UL 142 listing.

We have been manufacturing this tank since 1986 with over 30,000 in the field.

We begin with a UL142 steel inner tank and attach a styrofoam covering to create an annular space for the 30 mil Poly secondary containment. Next we place in our form a rebar cage and encapsulate the entire steel, poly and rebar in 6” of monolithically poured concrete.  The concrete is sealed and painted with a Thorocoat paint system.  Our concrete has a minimum break strength of 4000 psi in 28 days.

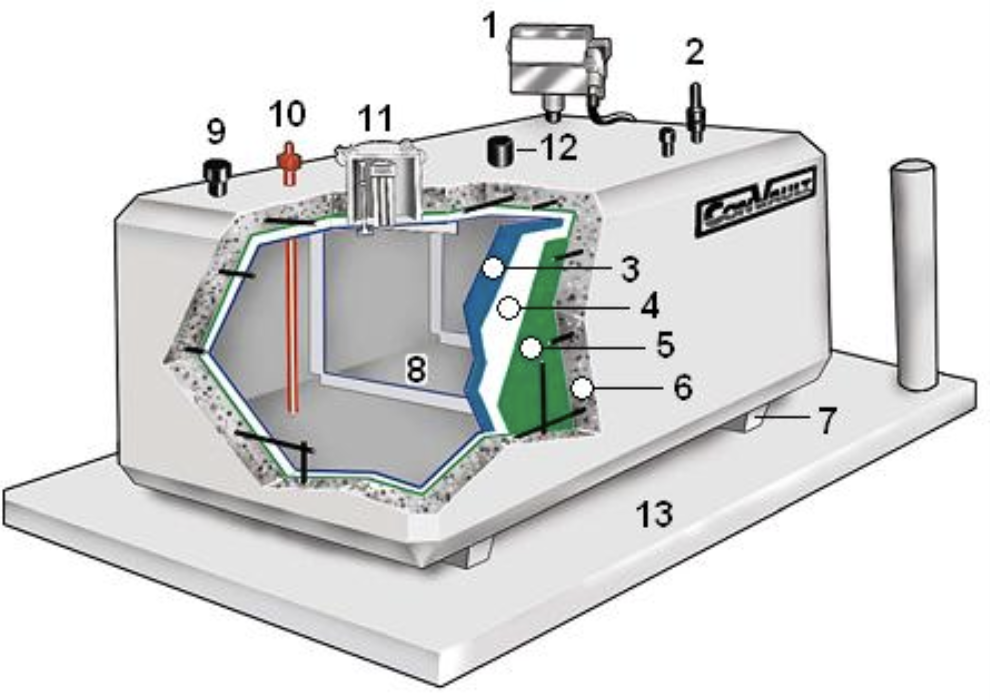

1. Dispensing Pump

2. Mechanical Level Gauge

3. Inner steel tank

4. Polystyrene insulation

5. 30 mil poly HDPE for secondary containment

6. 6” of rebar reinforced concrete

7. Concrete legs

8. Supports welded for inner tank

9. Standard Opening to primary tank

10. Through tank leak detection (interstitial)

11. 7 gallon overspill for filling tank

12. Emergency Vent

13. Concrete slab for placement of the tank
